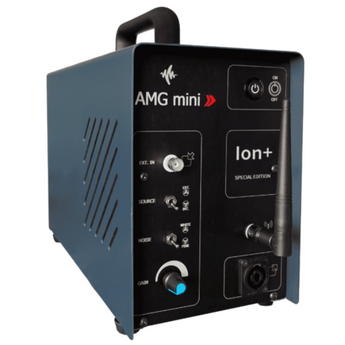

AMG Mini by Ntek

The AMG Mini ION by Ntek is a hybrid noise generator and power amplifier system designed for professional acoustic testing and sound insulation measurements. Combining cutting-edge performance with portability, the AMG Mini ION is engineered to deliver powerful sound output, making it suitable for both field and laboratory applications.

Key Features:

• Hybrid Technology: Integrates a noise generator and a power amplifier in a single compact unit for convenience and efficiency.
• High Power Output: Delivers up to 400W RMS power per channel, ensuring robust sound performance for demanding acoustic tests.
• Dual Channel Output: Features two output channels, enabling connection to multiple loudspeakers for complex acoustic setups.
• White and Pink Noise Generator: Built-in generator capable of producing white noise and pink noise, essential for sound insulation and reverberation measurements.
• Customizable External Source Input: Equipped with BNC and RCA inputs to connect external audio sources as required for advanced testing configurations.
• Wireless Remote Control: Comes with a wireless remote control unit for start, stop, and volume adjustments, allowing seamless operation from a distance.
• Battery Powered: Includes a rechargeable battery pack capable of providing up to 1 hour of continuous operation at full power, making it suitable for field use where power supply may be limited.
• AC Power Supply: Supports 230V AC mains power, ensuring extended operational time in laboratory or indoor environments.
• Wide Frequency Range: Covers a frequency range of 40 Hz to 10 kHz, making it suitable for a broad range of acoustic tests.
• Lightweight and Portable: Weighs 5 kg, with a compact design measuring 140 x 200 x 330 mm, facilitating easy transportation and setup in various testing environments.

Applications:

• Sound Insulation Testing: Used in building acoustics to generate reference noise for evaluating the sound reduction performance of walls, floors, and ceilings.
• Reverberation Time Measurements: Provides a stable noise source for measuring the reverberation characteristics of rooms and spaces.
• Acoustic Power Testing: Supplies consistent noise levels for determining the sound power output of devices and systems.
• Environmental Noise Assessments: Supports field measurements by delivering robust noise output in outdoor and large-space environments.
• Product Development and Quality Control: Utilized in R&D and manufacturing to verify acoustic properties and ensure compliance with industry standards.

Technical Specifications:

• Output Power: 2 x 400W RMS (per channel)
• Frequency Range: 40 Hz to 10 kHz
• Noise Generator: White noise / Pink noise, or external source via BNC/RCA input
• Channels: 2 channels
• Battery Life: Up to 1 hour of continuous operation at full power
• Power Supply: Rechargeable battery pack or 230V AC mains power
• Wireless Remote Control: Start, stop, and volume adjustment
• Dimensions: 140 x 200 x 330 mm
• Weight: 5 kg

Benefits:

• Versatile power supply options with both battery and mains operation.
• Suitable for both field and laboratory environments.
• Dual-channel output allows flexible loudspeaker configurations.
• Easy-to-operate wireless remote control enhances user convenience.
• Compact and lightweight design improves portability.
• Accurate and stable noise generation for reliable acoustic measurements.

The AMG Mini ION is a comprehensive solution for professionals in building acoustics, environmental noise evaluation, and product testing. It combines precision, power, and portability into a single unit, ensuring high-quality performance across diverse acoustic testing applications.
