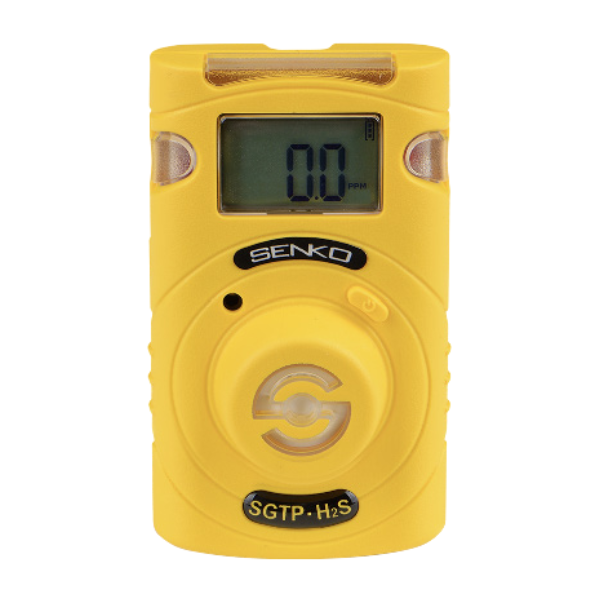

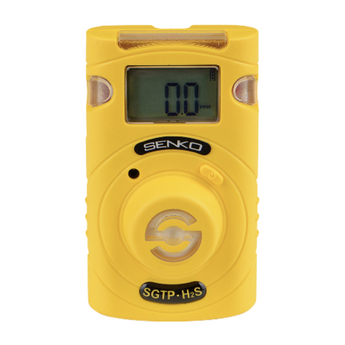

SGT-P Serviceable Single Gas Detector

SGT-P Serviceable Single Gas Detector by SENKO is a high-performance, electrochemical diffusion-based instrument engineered to monitor toxic gases and oxygen deficiency in industrial environments. Designed for long-term use, it features a replaceable sensor and battery, offering cost efficiency and flexibility across multiple applications.

Key Features:

• Replaceable Sensor and Battery: Extend product life by replacing the sensor and lithium primary battery without needing to change the entire device.

• Power On/Off Control: Simple one-button operation allows easy management of device activity and power usage.

• High-Performance Multi-Alarms: Visual alerts via flashing LEDs and LCD display, audible buzzer alarms, and vibration alarms ensure immediate awareness in hazardous situations.

• Sensor Trouble Detection: Built-in diagnostics continually verify sensor functionality, increasing confidence in measurement reliability.

• Water and Dustproof (IP67): Built to withstand harsh industrial environments with an IP67-rated rubber enclosure.

• Event Logging: Automatically stores the 30 most recent alarms for compliance and recordkeeping.

• Easy Configuration and Calibration: Configure via IR Link and calibrate using the SGT-P Docking Station for fast, accurate maintenance.

• Compact & Lightweight: Measures just 54 x 91 x 32 mm and weighs 93–104g, ideal for personal carrying or clipping.

Gas Detection Capabilities:

If your desired gas is not listed, custom configurations may be available upon request.Technical Specifications:

• Sensor Type: Electrochemical

• Measurement Method: Diffusion

• Display: LCD (Liquid Crystal Display)

• Battery: Lithium Primary (3.6V, 1.2Ah – Vitzrocell SB-AA02(P))

• Dimensions: 54(W) × 91(H) × 32(D) mm / 2.13 × 3.58 × 1.26 inches

• Weight: 93g (Toxic) / 104g (O₂), incl. battery and clip

• Operating Humidity: 5% to 95% RH (non-condensing)

• Operating Life: 24 months (based on 2 minutes of alarm/day)

• Certifications: ATEX, IECEx, CSA/UL, INMETRO, PESO, KCs, RoHS2, REACH, RCM, WEEE, FCC

Compatible Accessories:

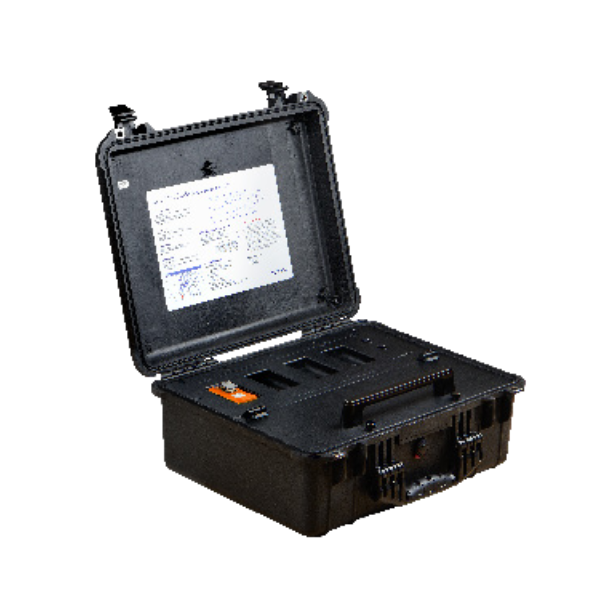

• SGT-P Docking Station: Calibrate, bump test, log alarms, configure up to 4 devices simultaneously.

• IR Link Module: For programming configurations and downloading logs via PC.

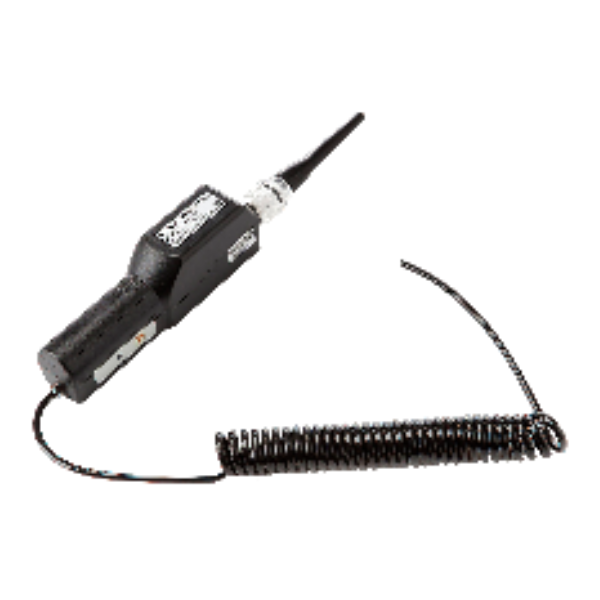

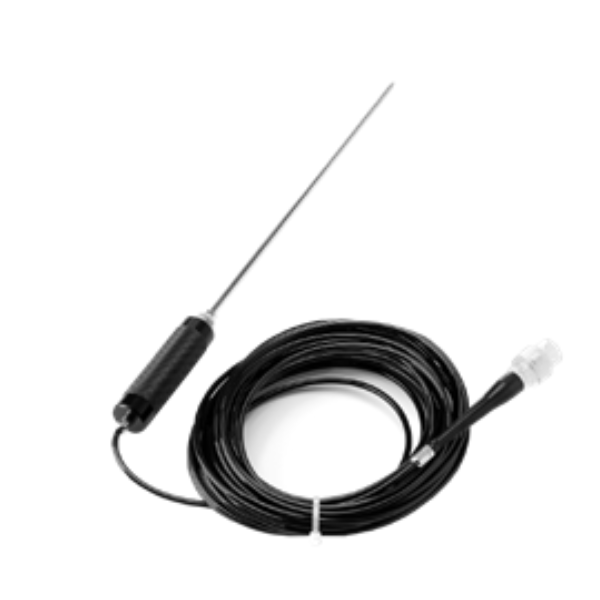

• SP-Pump101 Sampling Pump: Includes 5m or 10m extension probe for remote sampling in difficult access areas.

Applications:

• Confined space entry safety

• Oil & gas facilities

• Utilities and power generation

• Industrial maintenance and inspections

• Chemical processing environments

• Emergency response and hazmat teams

With its robust build, user-friendly interface, and extended serviceability, the SGT-P is a trusted solution for professionals demanding reliability, precision, and longevity in gas detection.
