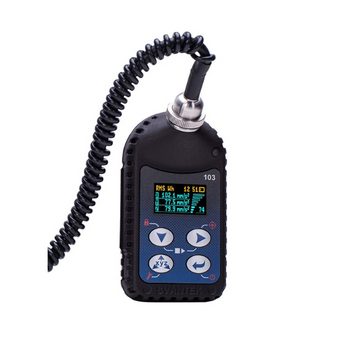

SV-103 Svantek: Hand-Arm Vibration Dosimeter

The SV-103 by Svantek is a hand-arm vibration dosimeter (HAVD) designed to measure and record workers' exposure to vibrations in occupational environments. It complies with ISO 8041:2021 and is the ideal tool for measurements according to ISO 5349 and European Directive 2002/44/EC.

Main Features:

• Vibration exposure measurement A(8): Evaluates daily exposure to vibrations according to ISO 5349-2.
• Total vibration value (VECTOR): Measures the total magnitude of vibrations in all directions.
• Measurement in m/s² and points: Provides results in acceleration units (m/s²) and dosing units (points).
• Measurement range: 0.2 ms-2 RMS ÷ 2000 ms-2 PEAK.
• Frequency range: 1 Hz ÷ 2000 Hz.
• Contact force detection: Unique feature providing information on contact time with the vibrating surface, allowing for more accurate A(8) exposure calculation.
• 8 GB memory: Stores large amounts of detailed logging data, including RMS, VECTOR, Max, Min, Peak, and Force with simultaneous two-step recording.
• Rechargeable battery: Enables autonomous operation for up to 10 hours.
• SvanPC Compass software: Facilitates configuration, analysis, and reporting of vibration data.

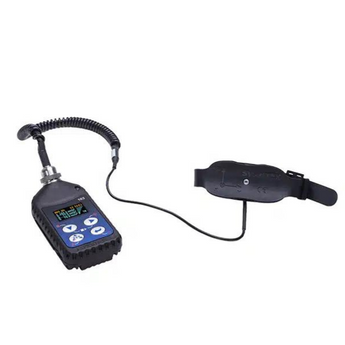

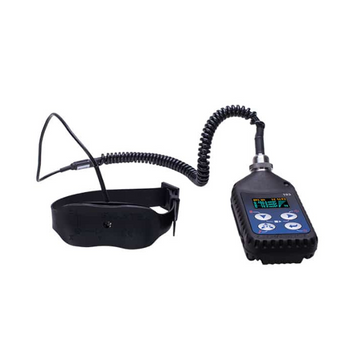

• Robust and shock-resistant: The handheld adapter with triaxial accelerometer and contact force sensors is rugged and can withstand demanding working conditions.
• Compact and lightweight: Allows for measurements without interfering with normal work activities.

Applications:

• Workplace vibration exposure assessment: For a wide range of industries, including construction, manufacturing, agriculture, mining, and forestry.
• Prevention of vibration injuries: Help identify and control risks of vibration-related injuries, such as carpal tunnel syndrome and Raynaud's disease.
• Compliance with health and safety regulations: Comply with regulations on vibration exposure in the workplace.

Benefits:

• Precise and reliable measurements: The SV-103 complies with international standards for vibration dosimeters, ensuring your data is accurate and reliable.
• Easy to use: The dosimeter is easy to use and set up, and the SvanPC Compass software makes data analysis and reporting straightforward.
• Versatile: The SV-103 can be used for a wide range of hand-arm vibration measurement applications.
• Robust and durable: The dosimeter is designed to withstand demanding working conditions.
• Lightweight and comfortable: The dosimeter is lightweight and comfortable to wear for extended periods.
