SV 303 Noise Monitoring

Overview

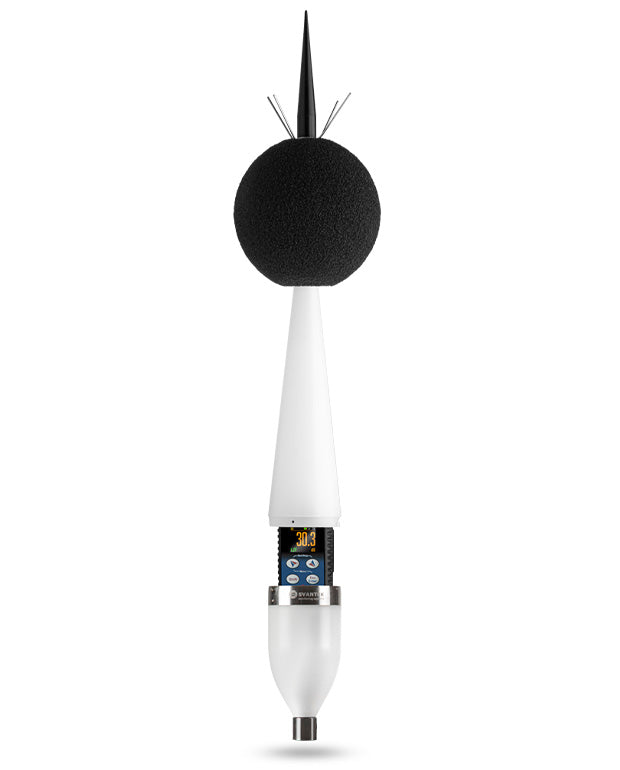

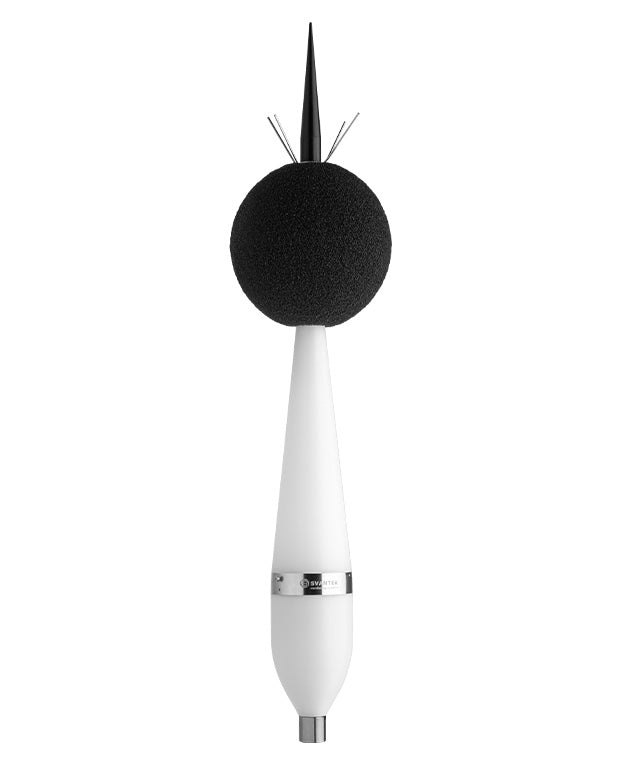

The SV 303 is a Class 1 noise monitoring terminal engineered for continuous, real-time noise measurement in urban and environmental settings. Featuring a patented MEMS microphone with a lifetime warranty and continuous self-check system, it delivers reliable long-term measurements without the drift associated with traditional condenser microphones. The SV 303 supports real-time octave and 1/3-octave analysis, optional audio event recording in WAV format, and integrates seamlessly with the SvanNET cloud platform for remote data access and monitoring. Its IP65-rated housing, wide operating temperature range (-20°C to +60°C), and USB-C power with battery backup make it suitable for permanent outdoor deployment on poles or facades. Ideal for smart city noise control programs, environmental compliance monitoring, and multipoint urban soundscape assessment.

Key Specifications

• Class 1
• IEC 61672-1:2013
• IEC 61260-1:2014
• 20 Hz–20 kHz
• 30–130 dB LAeq
• MEMS microphone (patented lifetime warranty)
• IP65
• 1/1 and 1/3-octave filters
• WAV audio recording (optional)
• SvanNET cloud platform
• 8 GB internal memory
• USB-C + Li-Ion battery
• Bluetooth
• -20°C to +60°C
• 600 x 66 mm

Applications

• Urban noise monitoring
• Smart city environmental management
• Environmental noise compliance
• Long-term outdoor monitoring
• Multipoint citywide noise control

Standards & Certifications

IEC 61672-1:2013 Class 1, IEC 61260-1:2014 Class 1
